Oil Fired Combination Steam Cleaner and Pressure Washer and Power Washer

Oil Fired Combination Steam Cleaner and Pressure Washer and Power Washer


Oil Fired Combination Steam Cleaner and Pressure Washer and Power Washer

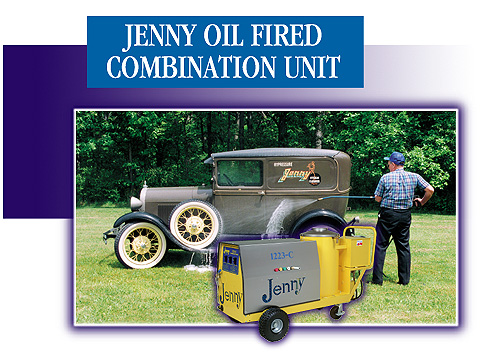

Oil Fired Combination Steam Cleaner and Pressure Washer and Power WasherJenny Oil Fired Combination Units demonstrate the culmination of advanced engineering, state of the art manufacturing, and extensive steam cleaner and pressure washer experience dating back to its inception in 1927 by Jenny. These units combine an extensive list of standard features with rugged strength and versatility.

The Combination Units, like all Jenny Oil Fired units, incorporate Jenny's Twin Fire Modular Gun Burner System featuring 18,000 Volt Twin Electrode Ignition System, Belt Driven 6" Diameter x 4" Wide Blower System, Adjustable Air Intake, and a Belt Driven Fuel Pump. This constant duty burner system allows for clean and efficient combustion of Kerosene, Diesel, #2 Home Heating Oil, or JP-4 Jet Fuel.

Since these are Jenny Combination Cleaners, you get the versatility of 3 cleaners in 1. With the flip of a switch, the machine can go from a cold pressure washer to a hot pressure washer. Change the tip in the gun and flip the machine selector switch, and the machine becomes a 325ƒF steam cleaner.

The high performance, heavy-duty heated units will clean any task both quickly and effectively. Pressures in the pressure wash mode range from 750 to 3000 PSI and volumes range from 2.3 to 5.0 GPM, they will make short work of fleet, farm, and construction equipment cleaning, light degreasing, floor and building cleaning. And if the work warrants it, simply change the tip in the end of the gun and flip a switch and the unit becomes a powerful steam cleaner for superior degreasing and sanitizing ability.


Oil Fired Combination Steam Cleaner and Pressure Washer and Power Washer

Jenny Combination units are very easy to operate. The lighted Motor, Burner, and Steam Clean Pressure Wash switches are conveniently located and visible to the operator glowing Red In the Off position and Green in the On position. Changing from the Pressure Wash mode to the Steam Mode is as simple as changing a tip in the end of the gun and flipping the mode switch. Upgrades and options are specially designed to simply bolt-on the machine.

Oil Fired Combination Steam Cleaner and Pressure Washer and Power Washer

All of the machine's major system and components are easily accessible. The entire front side of the large junction box opens to allow entry to all the electrical components and all the electrical connections made on our specially designed terminal board. The burner assembly can be easily removed with three wing nuts, a tubing connection and two ignition plug wires. The entire water control system is located on a centrally located manifold assembly. The pump can also be easily serviced by removing three hoses and two carriage bolts. Parts and accessories are always readily available for all Jenny machinesOil Fired Combination Steam Cleaner and Pressure Washer and Power Washer









Oil Fired Combination Steam Cleaner and Pressure Washer and Power Washer

Since we invented steam cleaning in 1927, quality has been the tradition of all Jenny cleaning equipment. We use only the finest available components, the best manufacturing methods and techniques in our state of the art manufacturing facility, ensuring these American built machines will pass our stringent cleaning machine standards.

Oil Fired Combination Steam Cleaner and Pressure Washer and Power Washer

Continuing our long standing tradition of reliability, we use only the highest grade components in our manufacturing processes. The drive system is either an industrial grade electric motor or a high performance OHV gasoline engine. The high pressure pump is a belt driven, oil bath, ceramic plunger pump. Jenny's specially designed Twin Fire Modular Gun Burner system is at the very core of all our oil fired machines.

Oil Fired Combination Steam Cleaner and Pressure Washer and Power Washer

Featuring a 5 year limited warranty, the heavy-duty, powder coated, 10 gauge steel, modular chassis was engineered to withstand years of rugged and punishing use and yet fit through a commercial doorway. All major components such as the fuel tank, stainless steel float tank, coil casing, back panel, and the front panel are bolted to the chassis.

Oil Fired Combination Steam Cleaner and Pressure Washer and Power Washer

Safety features that are standard on all Jenny units include: 24 Volt Intrinsically Safe Control Voltage, Nozzle (or Trigger Gun) Control, Over Pressure Protection, High Temperature Protection, and a Ground Fault Circuit Interrupter (Single Phase Units Only). Oil Fired Combination Steam Cleaner and Pressure Washer and Power Washer

Click Here to Download Product Specifications in Adobe Portable Document Format (PDF)

Oil Fired Combination Steam Cleaner and Pressure Washer and Power Washer
